MechaTrans® A-Series

Specifications and prices Product description Datasheets Applications and precautions

MTA series specifications and prices

All prices exclude tax. Specifications are measured at DC 100 V, the voltage we recommend.

Model	W x D x H (mm)	Displacement (µm)	Blocked force (N)	Stiffness (N/µm)	Resonance (Hz)	Capacitance (µF)	Solid model	1 pc	5+	25+	100+
MTA01S50F1	26 x 1 x 32	75	1.4	0.028	―	0.026	―	148,500	141,100	118,800	104,000
MTA01S100F0.6	26 x 1 x 32	150	0.6	0.006	―	―	―	148,500	141,100	118,800	104,000
MTA01S200F0.3	26 x 1 x 32	300	0.3	0.002	―	―	―	148,500	141,100	118,800	104,000
MTA02S50F5	25 x 2 x 28	75	5	0.074	―	0.090	―	148,500	141,100	118,800	104,000
MTA02S100F2	30 x 2 x 31	150	2	0.017	―	―	―	148,500	141,100	118,800	104,000
MTA02S200F1	35 x 2 x 33	300	1	0.004	―	―	―	148,500	141,100	118,800	104,000
MTA02S100F4	43 x 2 x 46	150	4	0.043	―	0.180	―	148,500	141,100	118,800	104,000
MTA02S200F2	43 x 2 x 42	300	2	0.011	―	―	―	148,500	141,100	118,800	104,000
MTA02S600F2	44 x 2 x 40	600	2	0.003	600	0.420	STEP →	148,500	141,100	118,800	104,000
MTA02S200F4	58 x 2 x 63	300	4	0.017	―	0.350	―	148,500	141,100	118,800	104,000
MTA02S400F2	58 x 2 x 55	600	2	0.005	―	―	―	148,500	141,100	118,800	104,000
MTA02S600F1	58 x 2 x 62	900	1	0.002	―	―	―	148,500	141,100	118,800	104,000
MTA02S400F7	58 x 2 x 81	600	7	0.017	―	0.820	―	148,500	141,100	118,800	104,000
MTA02S600F5	58 x 2 x 83	900	5	0.008	―	―	―	148,500	141,100	118,800	104,000
MTA02S800F3	58 x 2 x 79	1,200	3	0.004	―	―	―	148,500	141,100	118,800	104,000
MTA05S100F13	52 x 5 x 53	150	13	0.132	―	0.750	―	198,000	188,100	158,400	138,600
MTA05S200F10	50 x 5 x 51	300	8	0.037	―	―	―	198,000	188,100	158,400	138,600
MTA05S400F3	50 x 5 x 55	600	3	0.007	―	―	―	198,000	188,100	158,400	138,600
MTA05S200F12	58 x 5 x 65	300	12	0.049	―	1.40	―	198,000	188,100	158,400	138,600
MTA05S400F9	58 x 5 x 61	600	8	0.021	450	―	―	198,000	188,100	158,400	138,600
MTA05S600F4	58 x 5 x 65	900	4	0.007	288	―	―	198,000	188,100	158,400	138,600
MTA05S400F26	67 x 5 x 86	600	27	0.057	800	3.40	―	220,000	209,000	176,000	154,000
MTA05S1200F22 Datasheet →	67 x 5 x 86	1,200	22	0.018	400	4.40	STEP →	220,000	209,000	176,000	154,000
MTA05S2400F11 Datasheet →	77 x 5 x 91	2,400	11	0.005	190	4.70	―	275,000	261,250	220,000	192,500
MTA05S3000F3 Datasheet →	79 x 5 x 90.5	3,000	―	0.001	160	6.90	―	275,000	261,250	220,000	192,500
MTA10S200F43	75 x 10 x 75	300	43	0.228	―	5.40	―	275,000	261,250	220,000	192,500
MTA10S400F29	75 x 10 x 75	600	28	0.071	―	―	―	275,000	261,250	220,000	192,500
MTA10S700F14	83 x 10 x 75	1,050	14	0.019	―	―	―	275,000	261,250	220,000	192,500
MTA10S400F74	77 x 10 x 96	600	64	0.148	―	25	―	330,000	313,500	264,000	231,000
MTA10S1200F70	77 x 10 x 96	1,200	70	0.0583	462	―	―	330,000	313,500	264,000	231,000
MTA10S1600F18	89 x 10 x 97	2,400	18	0.011	190	―	―	330,000	313,500	264,000	231,000

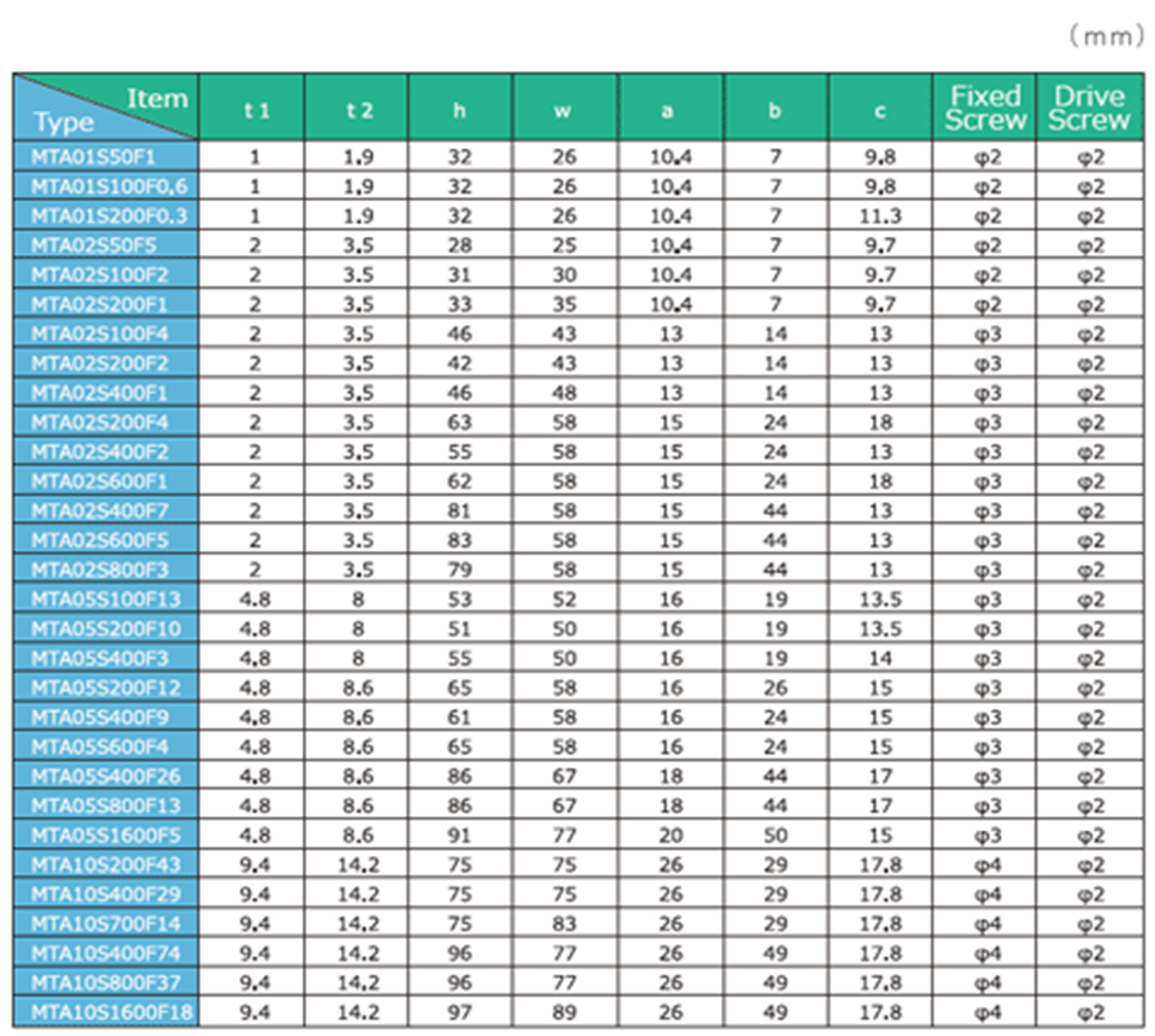

The parameters used in the table above.

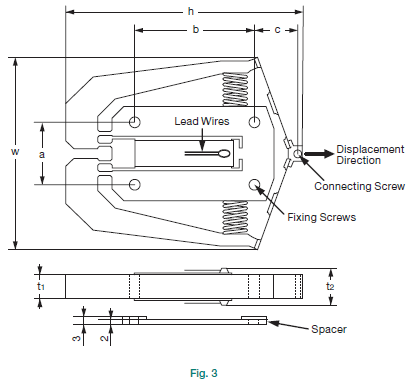

The dimensions of each part.

Product description

The A-Series is our long stroke MechaTrans®, reaching displacements of up to 3,000 µm. A displacement magnification mechanism built around the lever principle multiplies the movement of the stacked piezoelectric actuator inside, without drawing any additional energy.

Every figure in the table is measured at DC 100 V. The map below plots displacement against force across the range, which is the quickest way to narrow down a model.

Watch the A-Series in motion →

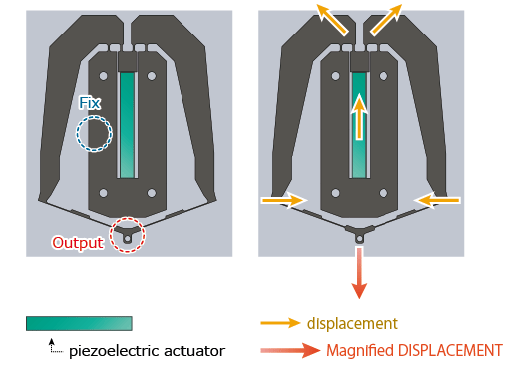

How the A-Series works.

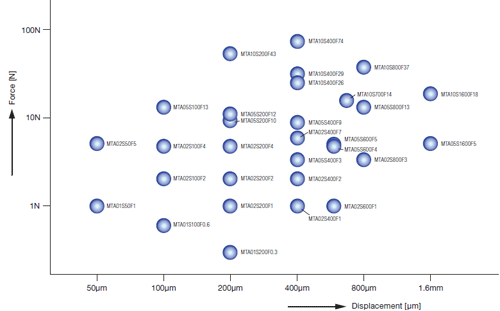

Displacement against force across the MechaTrans range.

Datasheets

MTA05S1200F22PDF → MTA05S2400F11PDF → MTA05S3000F3PDF →

Applications and precautions

Please read the operating precautions before using this series.

01Hysteresis 02Continuous DC voltage in high humidity 03Avoid tension on the actuator and compression on the arm 04Do not superimpose a DC voltage instantaneously 05Ambient temperature 06Polarization

Need a different specification?

Tell us the displacement, force and envelope you need and we will adapt one of these models or design a new one.
