MTA05S3000F3[Datasheet Download]

Specifications

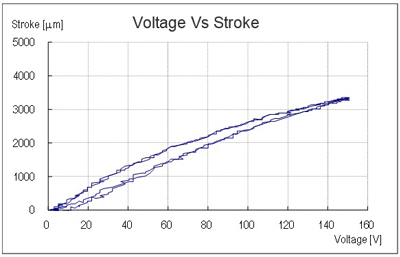

・Open-loop stroke： 3000 μm @ 150V (fixed-free)
*Tolerance value: 2400～3600 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.001 N/μm
・Resonance frequency(fixed-free): 160 Hz
*Tolerance value: 128～192 Hz
・Capacitance: 6.9 μF
・Dimension: 79x90.1x5 mm
・Mechanical interface: M2 Tapped hole
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 143 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

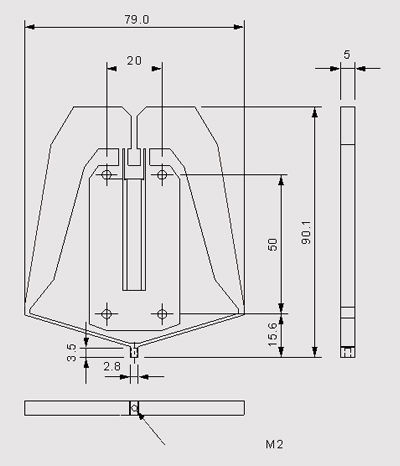

Geometry
