DRIVERS
Voltage base drivers
We supply drivers and controllers that run piezo actuators at high speed with low noise. Low noise matters for positioning work, and the ability to deliver a high instantaneous current is decisive in fast switching applications such as on and off drive. The range covers board, module and cased types for loads of very different capacity. Please get in touch if you need a driver adapted to your application.
| Gain | 15x |
| Output range | +150 V, +15 V monitor |
| Max. peak current | 8.5 A |
| Drives | Stacked piezo, bimorph, unimorph |
| Module size | 100 x 48 x 36 mm |
| Heat sink size | 100 x 98 x 25.1 mm |
| Power supply | +160 V, -12 V |
| Gain | 30x |
| Output range | 0 to +150 V |
| Average current | 100 mA |
| Drives | Stacked piezo, bimorph, unimorph |
| Dimensions | 120 x 50 x 210 mm |
| Power supply | AC 100 V |
| Gain | 20x |
| Output range | 0 to +150 V |
| Average current | 1 A |
| Drives | Stacked piezo, bimorph, unimorph |
| Dimensions | 145 x 325 x 125 mm |
| Power supply | AC 100 V or AC 230 V, 50/60 Hz |
MTAD3002
PRICE
¥800,000
| Gain | 50x |
| Output range | -20 to +150 V |
| Average current | 2 A |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 360 x 300 x 185 mm |
| Power supply | AC 100 V |
MTAD3002A
PRICE
¥800,000
Also available to rent at ¥100,000 per month
| Gain | 50x |
| Output range | 0 to +150 V |
| Average current | 2 A |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 360 x 300 x 185 mm |
| Power supply | AC 100 V |
MTAD3003
PRICE
Please contact us
| Gain | 50x |
| Output range | -20 to +150 V |
| Average current | 3 A |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 440 x 350 x 185 mm |
| Power supply | AC 100 V |
MTAD2010
PRICE
¥2,000,000
| Channels | 10 |
| Output range | 0 to 200 V ±5% |
| Adjustable offset | 0 to 200 V ±5% |
| Adjustable gain | 0 to 20x ±5% |
| Average current | 220 mA per channel |
| Drives | Stacked piezo |
| Dimensions | 450 x 467 x 167 mm |
| Power supply | AC 100 to 240 V, 10 A |
MTAD2012
PRICE
Please contact us
| Gain | 15x |
| Output range | 0 to +150 V |
| Average current | 0.7 A |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 440 x 350 x 200 mm |
| Power supply | AC 100 V |
MTAD4002
PRICE
Please contact us
| Gain | 50x |
| Output range | -20 to +150 V |
| Average current | 2 A |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 360 x 300 x 185 mm |
| Power supply | AC 100 V |
MTAD PDu1506
Six channel, ultra low noise, 150 V
PRICE
¥350,000
| Gain | 20x |
| Output range | -30 to +150 V |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 235 x 320 x 90 mm |
| Mass | 2,587 g |
| Power supply | AC 100 V |
| Gain | 27.5x or 55x, depending on configuration |
| Output range | 100 V or ±100 V |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus |
| Dimensions | 12 x 13 mm |
| Mass | 0.5 g |
| Power supply | 3 to 5.5 V |
| Gain | 13.75x, 27.5x or 55x, depending on configuration |
| Output range | +60 V, +90 V, +100 V, ±60 V, ±90 V, ±100 V |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 39 x 25 mm |
| Mass | 3 g |
| Power supply | 3 to 5.5 V |
PDu150
Three channel, ultra low noise, 150 V
PRICE
¥82,500
Manufactured by PiezoDrive
| Gain | 20x |
| Output range | -30 to +150 V |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 76 x 40 x 37 mm |
| Mass | 80 g |
| Power supply | +24 V |

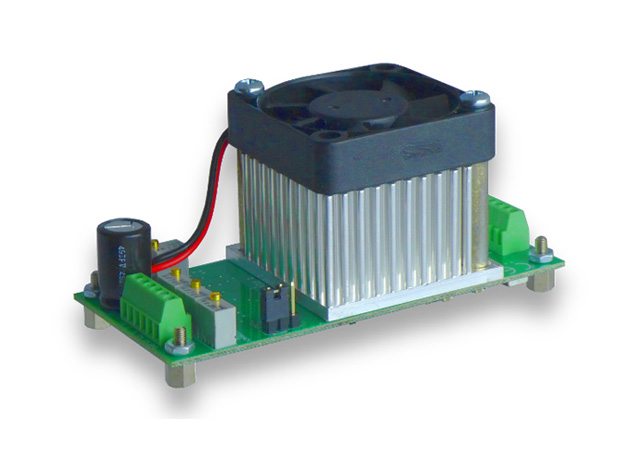

PDu150CL
150 V controller with strain gauge feedback
PRICE
¥82,500
Manufactured by PiezoDrive
| Gain | 20x |
| Output range | -30 to +150 V |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 40 x 89 x 37 mm |
| Mass | 80 g |
| Power supply | +24 V |
PDm200
High performance piezo actuator driver
PRICE
¥65,800
Manufactured by PiezoDrive
| Gain | 20x |
| Output range | -30 to +200 V, ±200 V, or ±400 V in bridge connection |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 71 x 38 mm |
| Mass | 50 g |
| Power supply | ±12 to ±34 V |
| Gain | 20x |
| Output range | +100 V, +150 V or +200 V |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 80 x 46 x 40 mm |
| Mass | 80 g |
| Power supply | 24 V |
PD200
60 W voltage amplifier
PRICE
¥439,800
Manufactured by PiezoDrive. Shipping charged separately.
| Gain | 20x |
| Output range | +200 V, +150 V, -50 to +150 V, ±100 V |
| RMS current | ±570 mA |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 275 x 141 x 64 mm |
| Power supply | AC 90 V to AC 250 V |

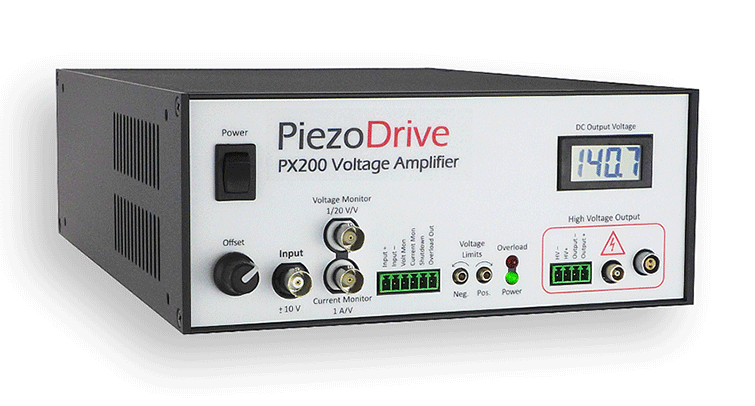

PX200
140 W voltage amplifier
PRICE
¥611,500
Manufactured by PiezoDrive. Shipping charged separately.
| Gain | 20x |
| Output range | +50 to +200 V, ±100 V, -50 to +150 V |
| RMS current | 1.5 A, or 3 A in the 100 V range |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 212 x 304.8 x 88 mm |
| Power supply | AC 90 V to AC 250 V |

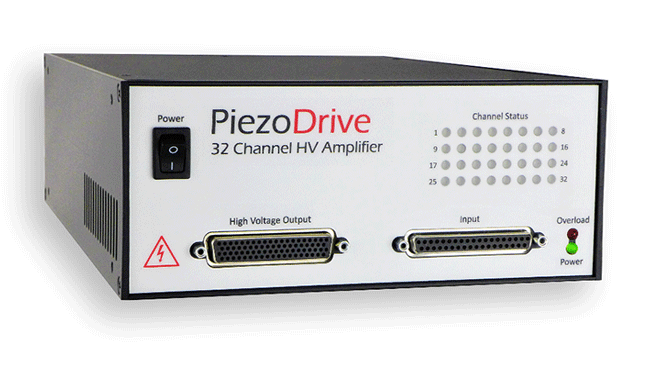

PD32
32 channel piezo driver
PRICE
¥837,300
Manufactured by PiezoDrive. Shipping charged separately.
| Gain | 15x or 30x, depending on configuration |
| Output range | +50 to +140 V, or ±50 to ±140 V, depending on configuration |
| RMS current | 106 mA per channel, or 53 mA per channel |
| Drives | Stacked piezo, bimorph, unimorph |
| Typical uses | Precision stages, pumps, air valves, autofocus actuators |
| Dimensions | 212 x 304.8 x 88 mm |
| Power supply | AC 90 V to AC 250 V |

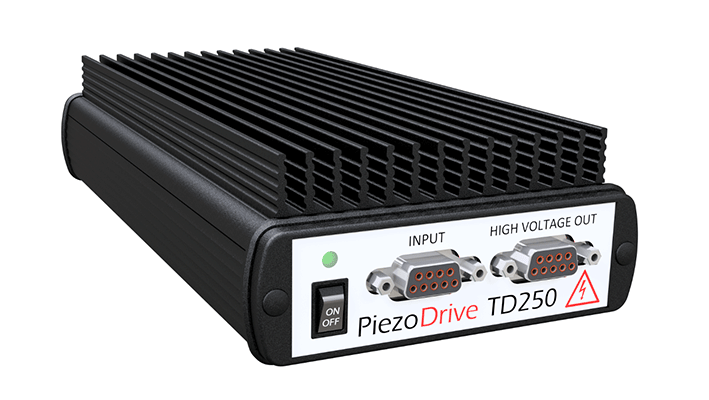

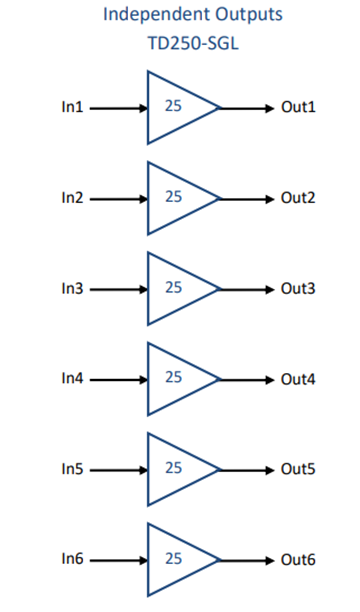

TD250-SGL
Six channel, ±250 V amplifier
PRICE
¥633,300
Manufactured by PiezoDrive. Shipping charged separately.
| Gain | 25x |
| Input channels | 6 |
| Output channels | 6 |
| Output voltage | ±250 V, or ±500 V in bridge mode |
| Peak current | 100 mA |
| Signal bandwidth | 25 kHz |
| Power bandwidth | 15 kHz |
| Noise into a 100 nF load | below 61 µV RMS |
| Input impedance | 1 MΩ |
| Output impedance | 100 Ω |
| Drives | Stacked piezo, bimorph, unimorph |
| Dimensions | 216 x 108 x 48 mm |
| Power supply | AC 90 V to AC 250 V (Meanwell GST120A15-R7B) |
| Supplied with | Two BNC and screw terminal breakout boxes, two straight through male to male DSUB9 cables, and an IEC C13 power cable for the destination country |
Output comparison
Which driver suits your actuator?
Send us the drive voltage range, capacitance, peak current and frequency you need and we will recommend a driver, or build one to order.
CONTACT US →
