Piezo Actuator : MechaTrans®

A piezoelectric element produces a large force but only a very small displacement. MechaTrans® enlarges that displacement with a lever mechanism, reaching up to one hundred times the movement of the element itself without any additional energy. Each series below is available as a standard product, and we can adapt any of them to your requirements.

MTA Series

ELONGATING

Specification	MIN	MAX
Width W (mm)	25	89
Depth D (mm)	1	10
Height H (mm)	28	97
Displacement (µm)	75	3,000
Blocked force (N)	0	64

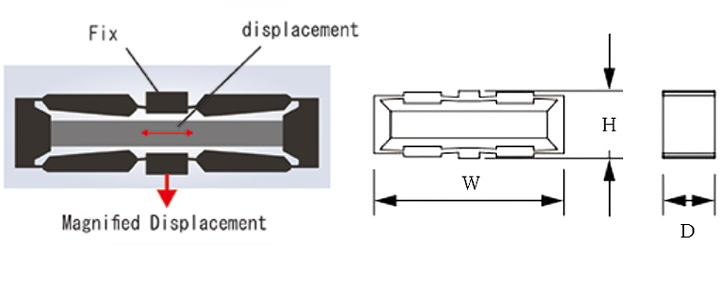

MTDD Series

ELONGATING

Specification	MIN	MAX
Width W (mm)	15	52
Depth D (mm)	3	16
Height H (mm)	5	14
Displacement (µm)	50	750
Blocked force (N)	3	90

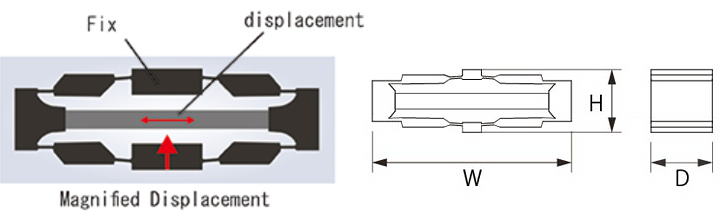

MTD Series

CONTRACTING

Specification	MIN	MAX
Width W (mm)	15	52
Depth D (mm)	3	37
Height H (mm)	5	90
Displacement (µm)	50	830
Blocked force (N)	3	920

MTN Series

ELONGATING

Specification	MIN	MAX
Width W (mm)	2	10
Depth D (mm)	3	10
Height H (mm)	10	80
Displacement (µm)	50	200
Blocked force (N)	4	113

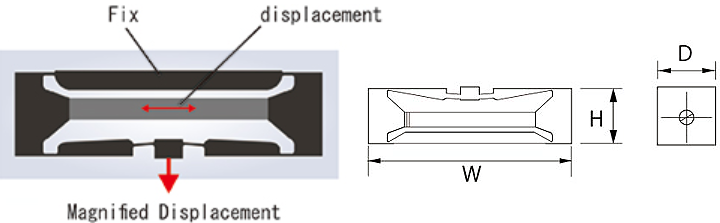

MTKK Series

ELONGATING

Specification	MIN	MAX
Width W (mm)	15	84
Depth D (mm)	3	21
Height H (mm)	5	37
Displacement (µm)	45	500
Blocked force (N)	4	170

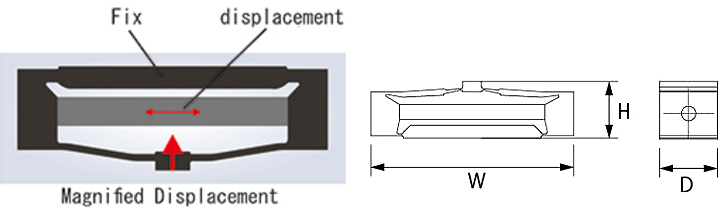

MTK Series

CONTRACTING

Specification	MIN	MAX
Width W (mm)	12	28
Depth D (mm)	5	12
Height H (mm)	8	12
Displacement (µm)	18	130
Blocked force (N)	13	65

MTAU Series

ELONGATING

Specification	MIN	MAX
Width W (mm)	―	79
Depth D (mm)	―	94
Height H (mm)	―	10
Displacement (µm)	―	1,450
Blocked force (N)	―	70

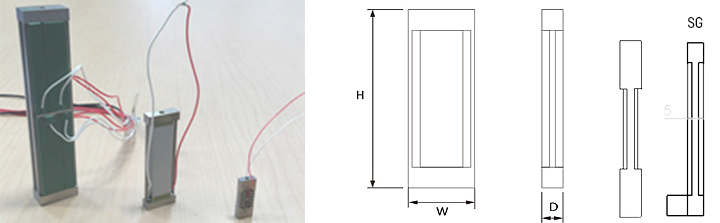

MTPTK Series

Specification	MIN	MAX
Width W (mm)	3	10
Depth D (mm)	9	16
Height H (mm)	22	52
Displacement (µm)	5	50
Blocked force (N)	50	3,000

Not sure which series fits?

Tell us the displacement, force and speed you need and we will recommend a series, or design a custom actuator around your application.
