Thin Tape Piezo Actuator

TOP PRODUCTS Piezo Actuator : MechaTrans® N-Series

MechaTrans® N-Series

MTN Series

prices in the table are tax included for Japan domestic customers. For overseas (non-Japan) customers, 10% sales tax will be deducted from the price stated.

	Piezo Element (mm)	Displacement (μm)		Blocked force Fs [N]	Stiffness [kN/m]	Resonance Frequency [Hz]	Capacitance [nF]	Solid Model	Price [￥]
	Piezo Element (mm)	@100V	@150V	@100V	Stiffness [kN/m]	Resonance Frequency [Hz]	Capacitance [nF]	Solid Model	1pc	5pcs & above	25pcs & above	100pcs & above
MTN03S100F6 Datasheet Download	2x3x10	70	100	6	60	950	200		88,000	83,600	70,400	61,600
MTN04S270F8 Datasheet Download	2x3x20	190	270	8	30	380	400		88,000	83,600	70,400	61,600
MTN10S1150F113 Datasheet Download	10x10x80	750	1150	113	110.7	106	21600		324,500	308,275	259,600	227,150

*1 : Nominal value　 *2 : Blocked-Free

Features of the MechaTrans®N-Series

Operate as movie shown.
Compact and thin
Output stroke perpendicular to the output stroke the piezoelectric actuator

The operating principles of MTN Series

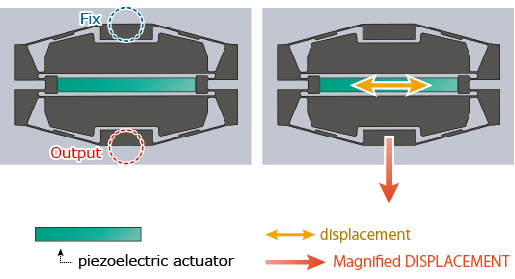

Fig.1 Operating principles of the MechaTrans®N-Series

MTN Series

Application of MTN Series

3-Axis Stage
