MECHANO TRANSFORMER CORPORATION

MTA05S1200F22[Datasheet Download]

MTA05S1200F22

Specifications

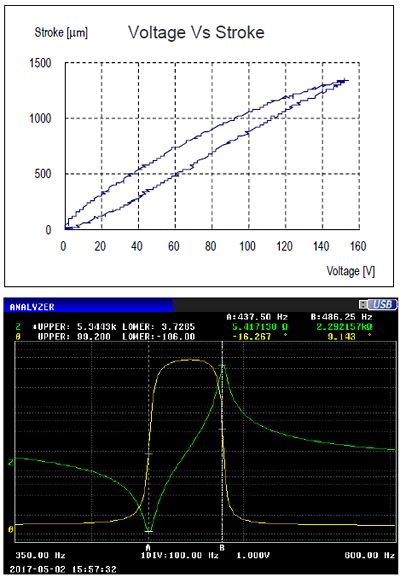

・Open-loop stroke: 1200 μm @ 150V (fixed-free)
*Tolerance value: 960~1440 μm
・Operating voltage:-20 V ~+150 V
・Stiffness in motion direction: 0.02 N/μm
・Resonace frequency(fixed-free): 400 Hz

*Tolerance value: 320~480 Hz
・Blocked force: 22 N (*Tolerance value: 17.6~26.4N)
・Capacitance: 4.4 μF
・Dimension: 67x86x8 mm
・Mechanical interface:φ2.2 hole
・Environment: 0 to 85℃ with humidity less than 40%
・Mass: 120 g

*All dimensions and specifications stated are nominal.



Option

・Mechanical interface can be tailor with an addition option fees.

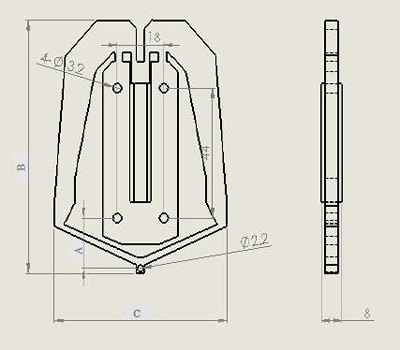

Geometry
