MECHANO TRANSFORMER CORPORATION

MTA05S2400F11[Datasheet Download]

MTA05S2400F11

Specifications

・Open-loop stroke: 2400 μm @ 150V (fixed-free)
*Tolerance value: 1920~2880 μm
・Operating voltage:-20 V ~+150 V
・Stiffness in motion direction: 0.005 N/μm
・Resonace frequency(fixed-free): 190 Hz

*Tolerance value: 152~228 Hz
・Blocked force: 11 N (*Tolerance value: 8.8~13.2N)
・Capacitance: 4.7 μF
・Dimension: 77x91x8.6 mm
・Mechanical interface:φ2.2 hole
・Environment: 0 to 85℃ with humidity less than 40%
・Mass: 138 g

*All dimensions and specifications stated are nominal.



Option

・Mechanical interface can be tailor with an addition option fees.

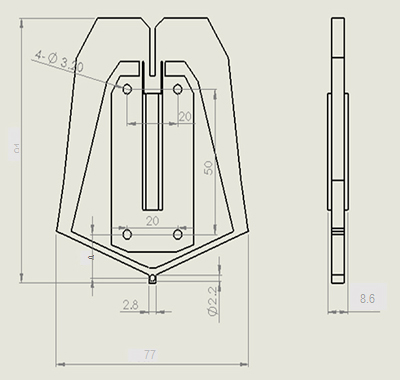

Geometry
