MTPTK03S5F50[Datasheet Download]

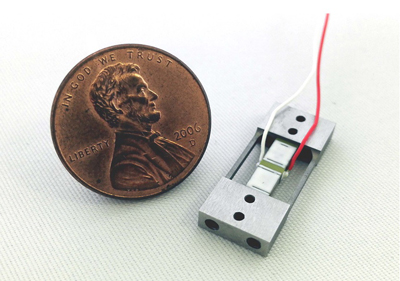

MTPTK03S5F50

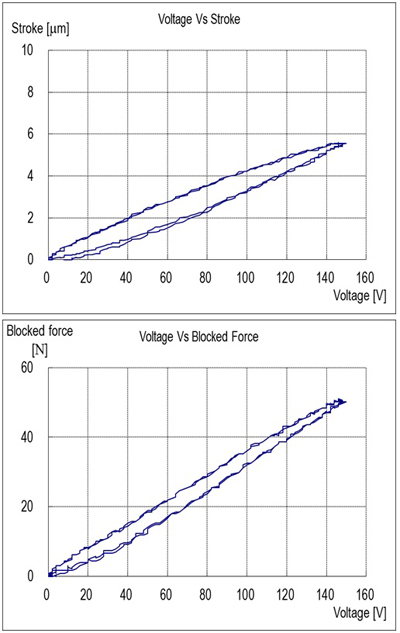

Specifications

・Open-loop stroke: 5 μm @ 150V (fixed-free)
*Tolerance value: 4~6 μm
・Operating voltage:-20 V ~+150 V
・Stiffness in motion direction: 10.0 N/μm
・Resonance frequency(fixed-free): 30000 Hz

*Tolerance value: 24000 ~ 36000 Hz
・Blocked force: 50 N (*Tolerance value: 40~60N)
・Capacitance: 0.2 μF
・Dimension: 3x8.6x22 mm
・Mechanical interface: 4-M1.4 Tapped hole and 4-M2.0 Tapped hole
・Environment: 0 to 85℃ with humidity less than 40%
・Mass: 2.5 g

*All dimensions and specifications stated are nominal.



Option

・Mechanical interface can be tailor with an addition option fees.

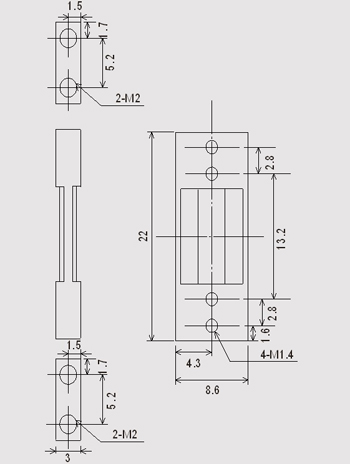

Geometry
