MECHANO TRANSFORMER CORPORATION

MTKK08S70F20[Datasheet Download]

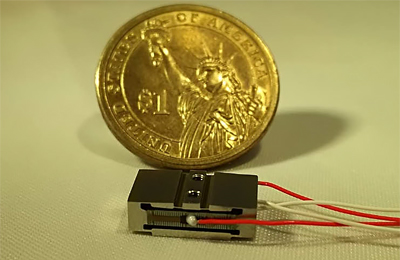

MTKK08S70F20

Specifications

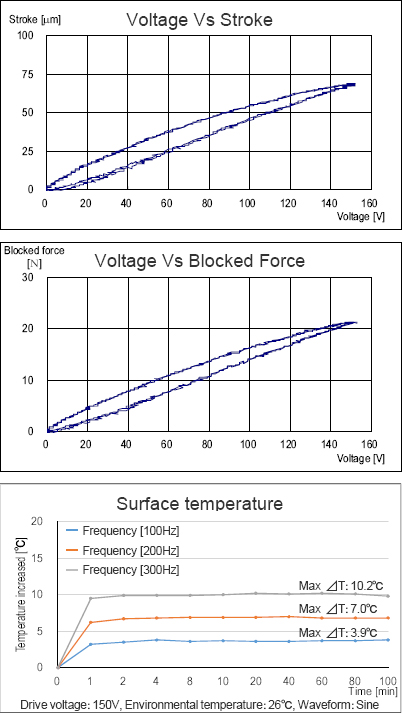

・Open-loop stroke: 70 μm @ 150V (fixed-free)
*Tolerance value: 56~84 μm
・Operating voltage:-20 V ~+150 V
・Stiffness in motion direction: 0.29 N/μm
・Resonance frequency(fixed-free): 6500 Hz

*Tolerance value: 5200~7800 Hz
・Blocked force: 20 N (*Tolerance value: 16.0~24.0N)
・Capacitance: 0.40 μF
・Dimension: 14.7x8x4.5 mm
・Mechanical interface: 2-M1.4 Tapped hole and 4-M2.0 Tapped hole
・Environment: 0 to 85℃ with humidity less than 40%
・Mass: 3.0 g

*All dimensions and specifications stated are nominal.



Option

・Mechanical interface can be tailor with an addition option fees.

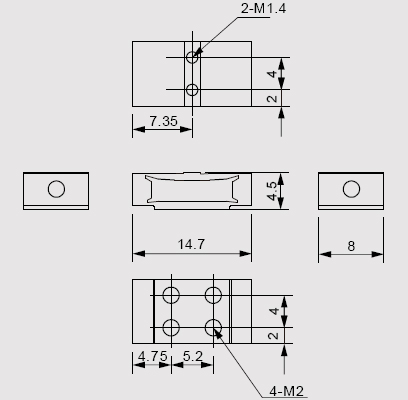

Geometry
