MTDD10S580F80NM-PS[Datasheet Download]

Specifications

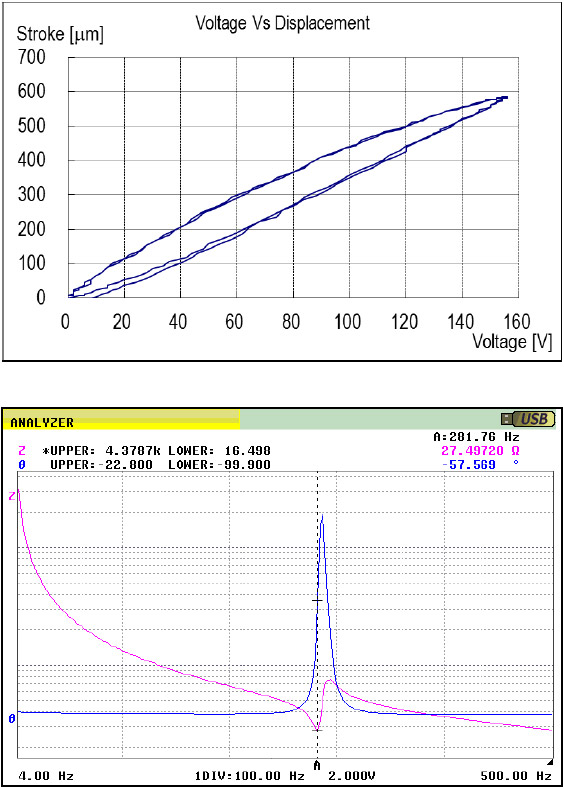

・Open-loop stroke： 580 µm @ 150V (fixed-free)
*Tolerance value: 435～725 µm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.14 N/µm
・Resonance frequency(blocked-free): 282 Hz
*Tolerance value: 210～350 Hz
・Blocked force: 80 N (*Tolerance value: 64.0～96.0 N)
・Capacitance: 11.6 µF
・Dimension: 64x10x21.4 mm
・Mechanical interface: 2-M2.0 Tapped hole and 4-M2.0 Tapped hole
・Environment ： 0 to 85℃ with humidity less than 40%
・Mass: 40 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

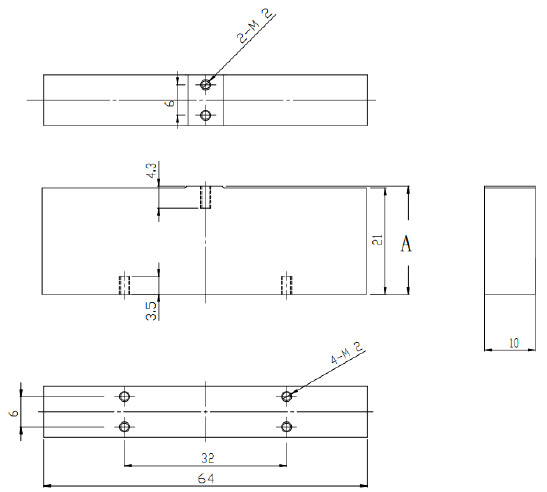

Geometry
