MECHANO TRANSFORMER CORPORATION

MTDD06S100F11[Datasheet Download]

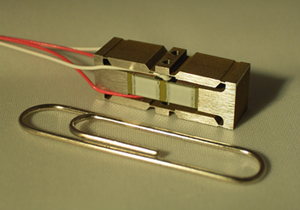

MTDD06S100F11

Specifications

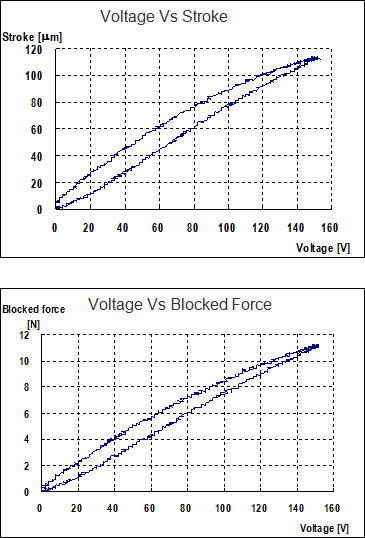

・Open-loop stroke: 100 µm @ 150V (fixed-free)
*Tolerance value: 85~130 µm
・Operating voltage:-20 V ~+150 V
・Stiffness in motion direction: 0.11 N/µm
・Resonance frequency(fixed-free): 900 Hz
*Tolerance value: 720~1080 Hz

・Blocked force: 11 N (*Tolerance value: 8.5~13.5N)
・Capacitance: 0.36 µF
・Dimension: 20x6x7 mm
・Mechanical interface: 2-M1.4 Tapped hole at both sides
・Environment: 0 to 85℃ with humidity less than 40%
・Mass: 4.8 g
*All dimensions and specifications stated are nominal.



Option

・Mechanical interface can be tailor with an addition option fees.

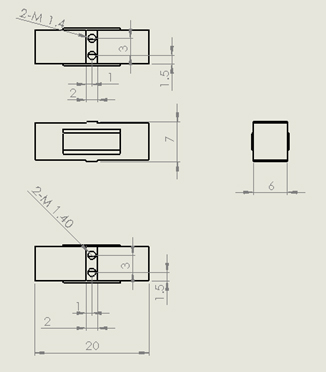

Geometry
