MTDD06S100F10

Specifications

・Open-loop stroke: 100 µm @ 150V (fixed-free)
*Tolerance value: 85~130 µm
・Operating voltage:-20 V ~+150 V
・Stiffness in motion direction: 0.10 N/µm
・Resonance frequency(fixed-free): 700 Hz
*Tolerance value: 560~840 Hz
・Blocked force: 10 N (*Tolerance value: 7.7~12.3N)
・Capacitance: 0.20 µF
・Dimension: 20x6x7 mm
・Mechanical interface: 2-M1.4 Tapped hole at both sides
・Environment: 0 to 85℃ with humidity less than 40%
・Mass: 4.2 g
*All dimensions and specifications stated are nominal.



Option

・Mechanical interface can be tailor with an addition option fees.

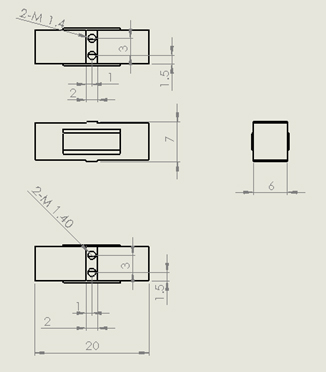

Geometry
