MTDD03S50F3[Datasheet Download]

Specifications

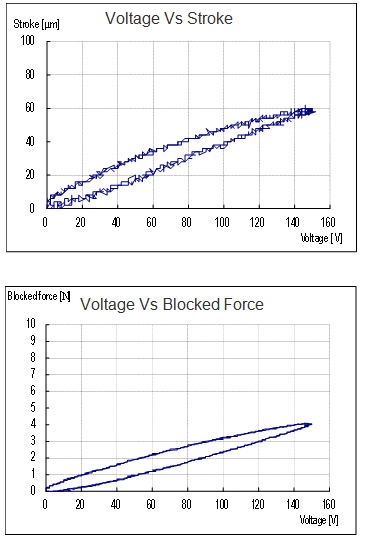

・Open-loop stroke： 50 µm @ 150V (fixed-free)
*Tolerance value: 40～60 µm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.06 N/µm
・Resonance frequency(fixed-free): 1500 Hz
*Tolerance value: 1200～1800 Hz
・Blocked force: 3 N (*Tolerance value: 1.0～5.0N)
・Capacitance: 0.03 µF
・Dimension: 15x3x5 mm
・Mechanical interface: 1-M2.0 Tapped hole at both sides
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 1.0 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

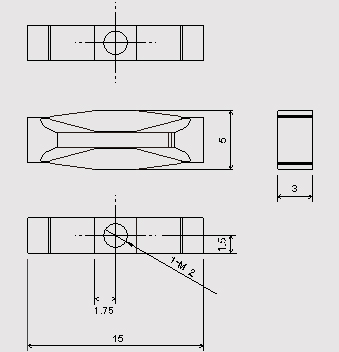

Geometry
