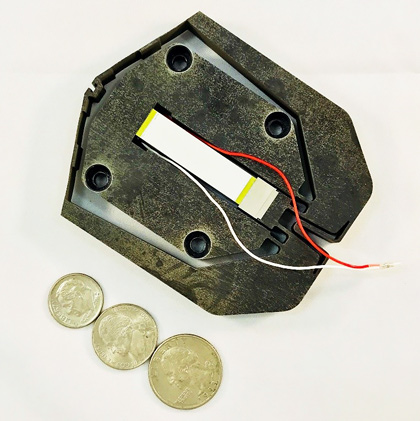

MTAU10S1450F70NM[Datasheet Download]

Specifications

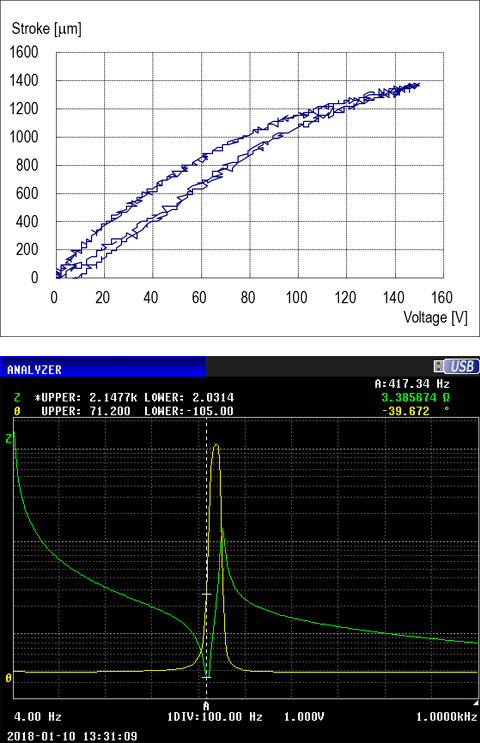

・Open-loop stroke： 1450 μm @ 150V (fixed-free)
*Tolerance value: 1160～1740 μm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.048 N/μm
・Resonance frequency(fixed-free): 425 Hz
*Tolerance value: 340 ～ 510 Hz
・Blocked force: 70 N (*Tolerance value: 56～84N)
・Capacitance: 25 μF
・Dimension: 79x94x10 mm
・Mechanical interface: It is customizable
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 395 g
・Material: Non-magnetic material
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

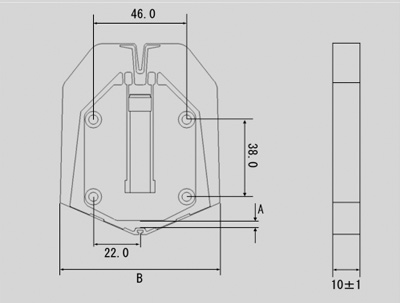

Geometry
